Production Test Bench

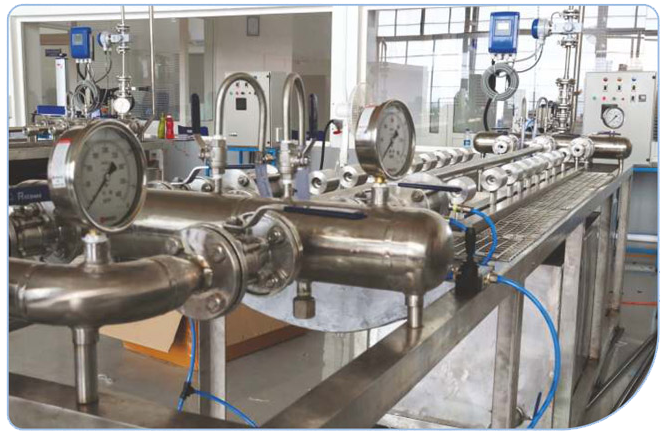

Ramguru Production Test Bench

About Production Test Bench

The production test benches are mainly server for the purpose of production. A specified size or multiple sizes can be tested in this Test Bench. Comparison facility is adopted in this Test Bench or sometimes be equipped with Gravimetric System. EMF will be kept as reference meter in this setup. The test bench can accommodate DN10, DN15, DN20 at a time. Material of construction used for this Test Bench will be strictly SS 304.

Our Services

Technical Specifications

  • Mountable Meter Sizes
    Mountable Count as per standard
  • DN15
    20
  • DN20
    16
  • DN25
    12
  • Flow Range
    Pressure Range (Min to Max)
  • 0.015 m3 (15 LPH) to 7 m3 (7000 LPH)
    0 to 20 Bar
  • Component
    Manufacturing Material
  • Meter holding Adaptors
    Stainless Steel 304
  • Pneumatic Cylinders
    Stainless Steel 304
  • Cover and water drainage tray
    Stainless Steel 304
  • Storage Tank
    Stainless Steel 304
  • Collection Tank
    Stainless Steel 304
  • Test facility body (frame)
    Epoxy Painted MS

Salient Features

  • High Head vertical inline pump is used for meters ranging from DN15 to DN25
  • Reference meters used is EMF and / or coriolis meter as per requirement
  • Calibration Method is Comparison method and / or gravimetric method as per requirement
  • Goose Neck assembly to ensure at most accuracy of measurement in Gravimetric system
  • Pneumatic Telescopic Mount
