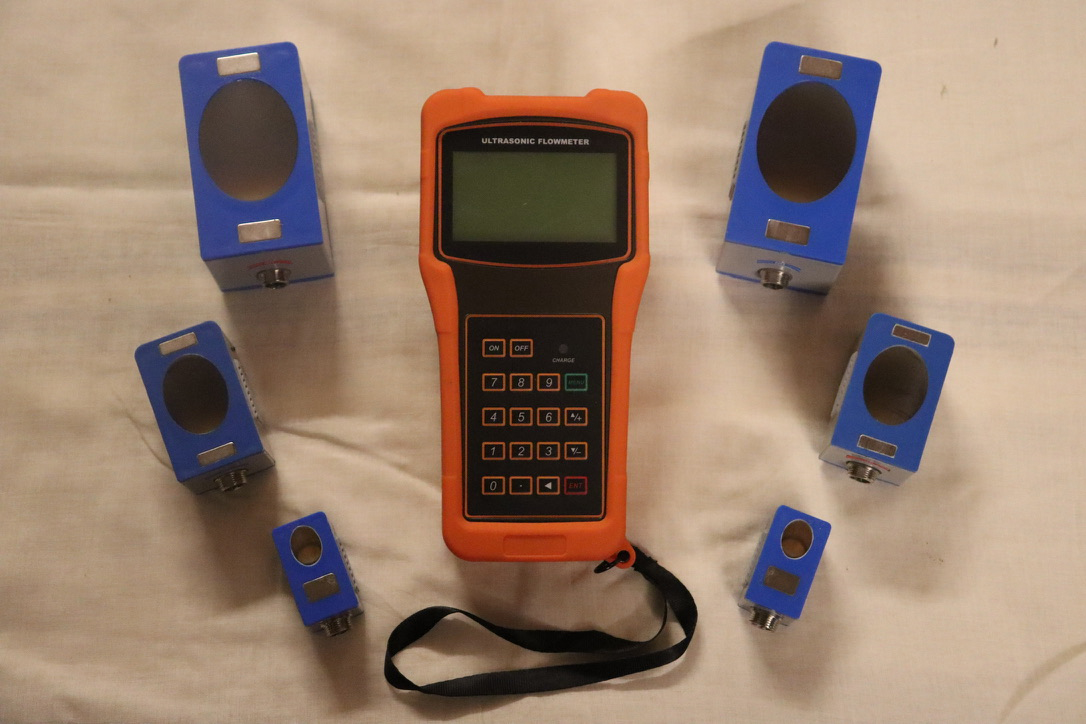

Ramguru On Site Calibration

About On Site Calibration

The first of its kind at most affordable rates, Ramguru Services has launched the facility of On-site calibration of flow instrument. Maintaining an accurate flow reading over long time periods also requires a stable, reliable flow.The use of an on-site flow metercalibration and flow measurement, when combined with the proper flow meter technology, can deliver this desiredmeasurement quality at lower total cost.The quality of the wholemeasurement chain can only be assured on-site, when the calibration is achieved to the meter which is in operation at its trueinstallation position. In an on-site calibration, the error components caused by different parts of theflow measurement chain is identified and corrected for, allowing correction of the errorcomponents where they originate.

The standards of the instruments used in our On-site calibration facility are pre-calibrated and post calibrated with NABL accredited laboratory to ensure optimum accuracy.

Ramguru Services, combines the experience of over a decade in the industry along with the most accurate and reliable instruments help the customers achieve the best optimum Calibration of their water meters with most affordable rates at their own factory location. We also ensure that our most experienced engineers assist you with the process and ensure the most accurate result are shared with customers and the best technical advice is shared for maximum efficiency.

Technical Specifications

  • Standards – BS 8452 - 2010 - Use on clamp - on (externally mounted) ultrasonic flow metering techniques for fluid applications
  • Linearity of the Reference Instrument
    0.5%
  • Repeatability
    0.2%
  • Accuracy claimed
    (+/-) 2% of measured flow
  • Calibration Size Range
    20mm to 5000mm
  • Velocity Range
    Minus 12 m/sec to +12 m/sec
  • Pipe Wall thickness Range
    Negligeable to 75mm
  • Pipe Material
    All type of metals, PVC

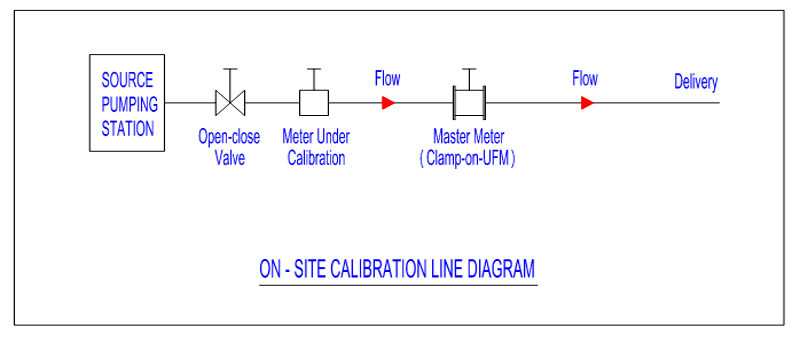

Line Diagram of the setup

Ramguru Line Diagram of the setup
