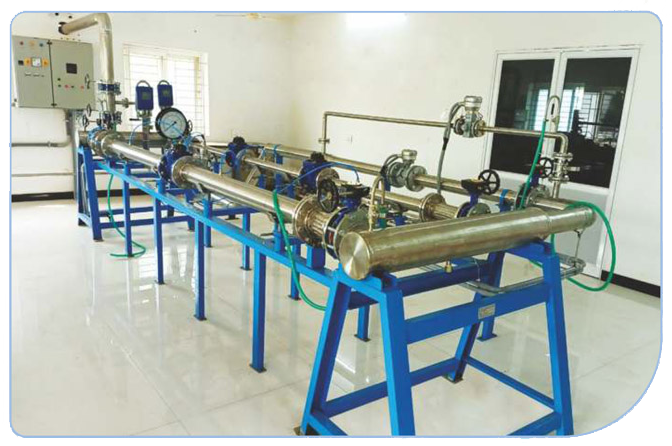

Ramguru Bulk Meter Facility

About Bulk Meter Facility

Bulk Meter setup is the facility widely used for the test of sizes DN32 to DN300 or above. Gravimetric or comparison method can be adopted for this Test facility. Generally, number of test meters that can be mounted in the facility will be 1 to 3 Nos depending upon the size of the Test Meters, since the straight length has to be kept as per standard specifications. In the Bulk meter facility, accurate weighing balance will be mounted for Gravimetric system and EMF will be mounted for reference flow meter. Material of construction used in this test facility will be strictly SS 304.

Technical Specifications

  • Mountable Meter Sizes
    Mountable Count as per standard
  • DN32
    3
  • DN40
    3
  • DN50
    3
  • DN65
    2
  • DN80
    2
  • DN100
    1
  • DN150
    1
  • DN200
    1
  • DN250
    1
  • DN300
    1
  • Flow Range
    Pressure Range (Min to Max)
  • 12 m3 (12000 LPH) to 1200 m3 (12,00,000 LPH)
    0 to 6 Bar
  • Component
    Manufacturing Material
  • Meter holding Adaptors
    Stainless Steel 304
  • Pneumatic Cylinders
    Stainless Steel 304
  • Water drainage tray
    Stainless Steel 304
  • Storage Tank
    Stainless Steel 304
  • Gooseneck assembly, Valve mounting manifold, Pressure manifold etc
    Stainless Steel 304
  • Collection Tank
    Stainless Steel 304
  • Test facility body (frame)
    Epoxy Painted MS

Salient Features

  • Centrifugal pump is used for meters ranging from DN32 to DN300
  • Reference meters used is EMF and / or coriolis meter as per requirement
  • Calibration Method can be Gravimetric or Comparison method
  • Goose Neck assembly to ensure at most accuracy of measurement in Gravimetric system
  • Pneumatic Telescopic Mount
  • Pressure Loss measurement system
  • Temperature measurement Unit
